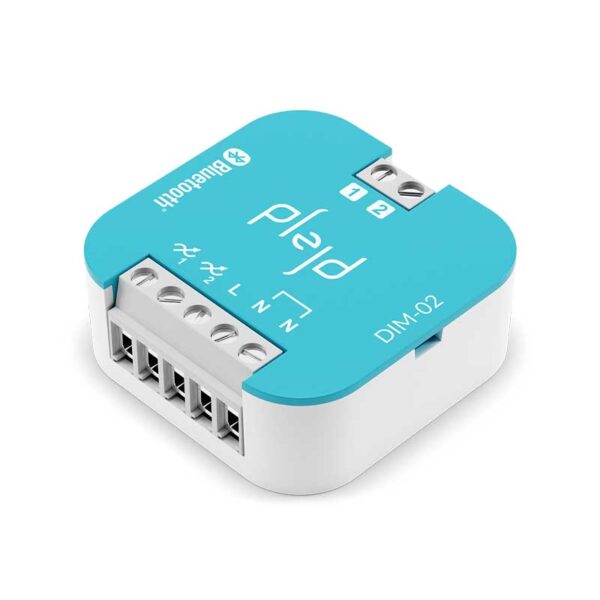

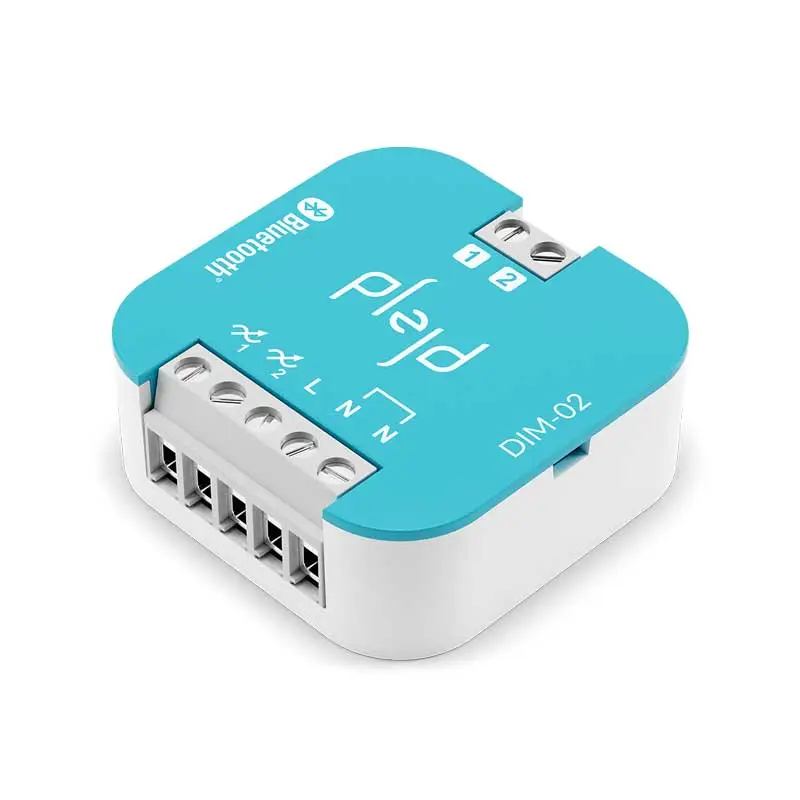

Plejd Kron can dimmer 2x100VA

SKU: 1377703

Plejd Kron can dimmer 2x100VA

EUR72.13

  • Two in one universal dimmer with output for two ignitions and two control inputs for connection to crown switches.
  • Setting and control through the Plejd app (Bluetooth).
  • Control via other Pleid products.
  • Adjustable min, max and start level.
  • Can have different loads on channel 1 and channel 2.
  • Time functions such as astro clock, week clock and scheduling.
  • Scenes from mobile or button/double-click.
  • Fits behind push button in standard appliance box.
  • Double N for zero crossing.
Read more
Available in central stock
Fast facts

Additional information

Weight 0.06 kg

Krondimmer is a two-channel universal dimmer with output for two different loads for control with a spring-loaded push button or motion sensor. The product can be controlled automatically through built-in time functions such as astro and week clock, as well as wirelessly via the app or other Plejd products. DIM-02 has adjustable minimum, maximum and start level and can handle loads of up to 100 VA per channel.

Description

Krondimmer is a two-channel universal dimmer with output for two different loads for control with a spring-loaded push button or motion sensor. The product can be controlled automatically through built-in time functions such as astro and week clock, as well as wirelessly via the app or other Plejd products. DIM-02 has adjustable minimum, maximum and start level and can handle loads of up to 100 VA per channel.

Additional information

Weight 0.06 kg

Reviews

There are no reviews yet.

Be the first to review “Plejd Kron can dimmer 2x100VA”

Your email address will not be published. Required fields are marked *


The reCAPTCHA verification period has expired. Please reload the page.

Load Effect
Halogen/incandescent light (230V) 0-100W
LED light sources/drivers (230V rear) 0-100VA
LED light sources/drivers (230V front) 0-50VA
Electronic transformers (12V halogen) 0-100VA

*Per output (total max power 200VA)

Do not use with: Fluorescent lamps, conventional transformers or low energy lamps.
