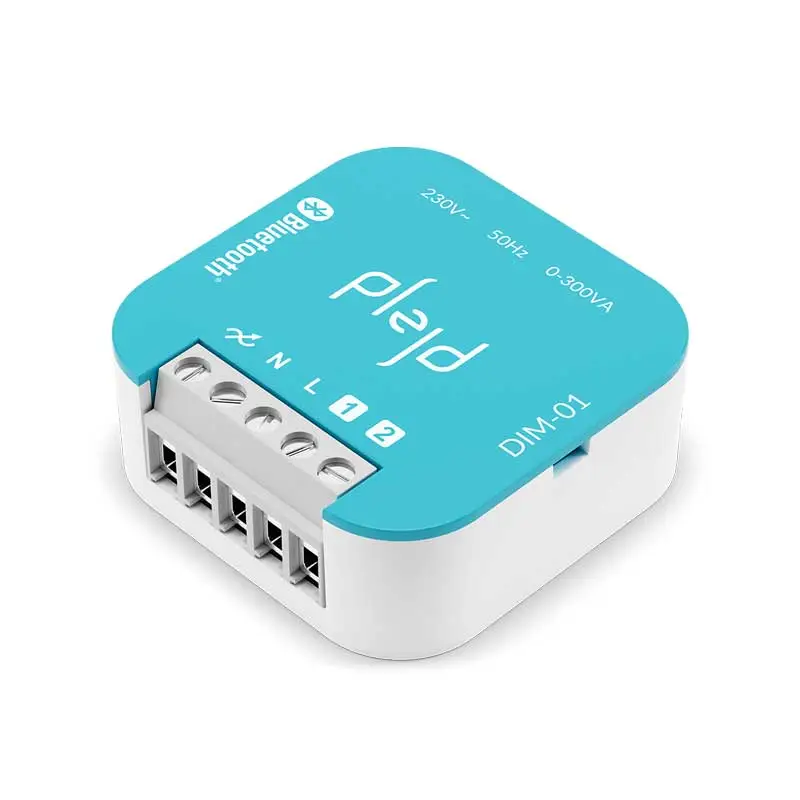

Plejd Can dimmer 300VA

SKU: 1377701

Plejd Can dimmer 300VA

EUR56.69

Available in central stock
Quick facts

Additional information

Weight 0.06 kg

Universal dimmer with two separate inputs for control via a spring-loaded push button or motion sensor. The product can be controlled automatically through built-in time functions such as astro and week clock, as well as wirelessly via the app or through other Plejd products. DIM-01 has adjustable minimum, maximum and start levels and can handle loads of up to 300 VA.

Execution

  • Universal dimmer with multiple inputs for control
  • Setup and control via the free Plejd app (Bluetooth®)
  • Control via other Plejd products
  • Adjustable min, max and start level
  • Load: 230V Halogen/Incandescent 0-300W 230V LED light sources/drivers (Rear) 0-200VA 230V LED light sources/drivers (Front) 0-100VA Electronic transformers (12V halogen) 0-300VA
  • Time functions such as astro clock, week clock and timer
  • Scenes from mobile or button/double-click
  • Fits behind push button in standard appliance box

Description

Universal dimmer with two separate inputs for control via a spring-loaded push button or motion sensor. The product can be controlled automatically through built-in time functions such as astro and week clock, as well as wirelessly via the app or through other Plejd products. DIM-01 has adjustable minimum, maximum and start levels and can handle loads of up to 300 VA.

Additional information

Weight 0.06 kg

Reviews

There are no reviews yet.

Be the first to review “Plejd Can dimmer 300VA”

Your email address will not be published. Required fields are marked *


The reCAPTCHA verification period has expired. Please reload the page.

Load Effect
Halogen/incandescent (230V) 0-300W
LED light sources/drivers (230V rear) 0-200VA
LED light sources/drivers (230V front) 0-100VA
Electronic transformers (12V halogen) 0-300VA

Do not use with: Fluorescent lamps, conventional transformers or low energy lamps.
