Hinges after 1850 large left
Hinges after 1850 large left - Image 2

SKU: 3031-19-9

Hinges after 1850 large left

EUR15.06

Available in central stock
Quick facts

Additional information

Weight 0.1 kg

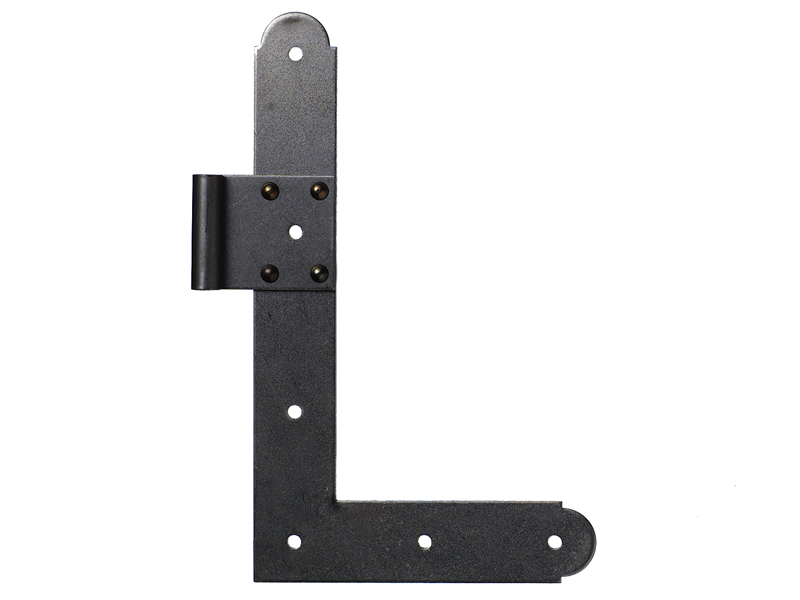

Hinge, left. Window fittings after a dominant model from the period 1850-1900. High quality. Hinge bars, hinges and corner brackets are available in two sizes, one for thicker arches and one for thinner ones.

To hang a sash that is on the left of a window, you need a left hinge and a right hinge that you turn around and 2 hinge bars.

Untreated iron. The hinge is screwed at the riveted part and nailed otherwise. Length 10.5cm, height 17.5cm, width 2.5cm, thickness 2mm. Suitable screw no 12.

Description

Hinge, left. Window fittings after a dominant model from the period 1850-1900. High quality. Hinge bars, hinges and corner brackets are available in two sizes, one for thicker arches and one for thinner ones.

To hang a sash that is on the left of a window, you need a left hinge and a right hinge that you turn around and 2 hinge bars.

Additional information

Weight 0.1 kg

Reviews

There are no reviews yet.

Be the first to review “Hinges after 1850 large left”

Your email address will not be published. Required fields are marked *


The reCAPTCHA verification period has expired. Please reload the page.

You may also need to

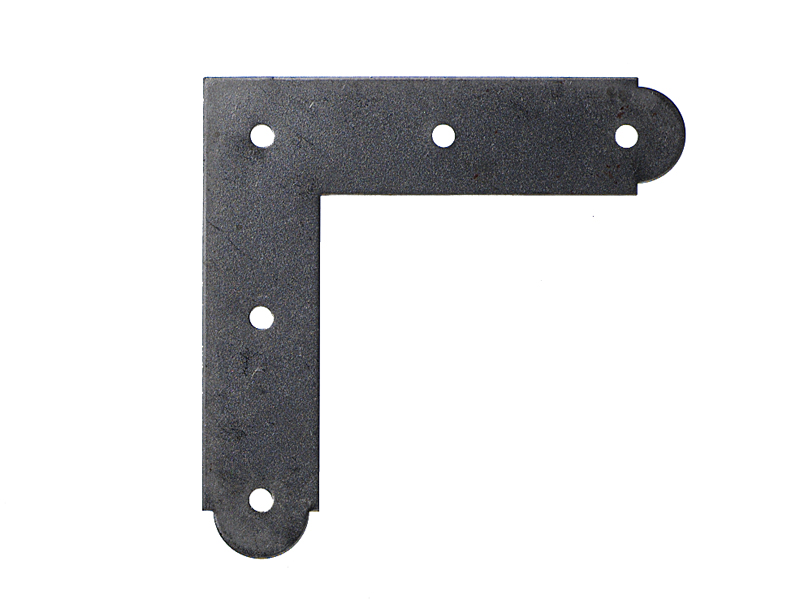

Corner iron after 1850 large

EUR7.76

Add to cart

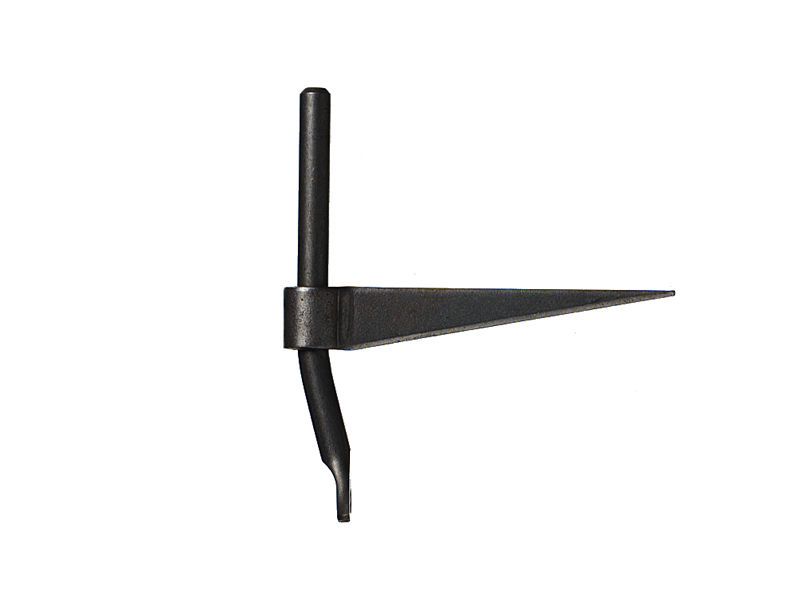

Hinged bar after 1850 large

EUR10.86

Add to cart

Related products

Raising plate Spring bracket m 5 mm

An elevation plate or spacer plate is often needed when installing a weatherization fitting on inward opening windows. The thickness of the sash and the distance to the window frame can vary and an elevation plate helps to mount in a neat way. Usually there is a difference of about 5-20 mm and then you need to buy corresponding elevation plates to ensure a good installation.

Elevation washers may also be needed when installing weatherization fittings for outward opening windows. For example, when you have stucco or profiles in the window sash or window sill that do not allow you to mount the weatherization fitting where you want.

EUR3.65

Hook 5694 Nickel-plated 20 mm

Model: Lock Company No. 1310

Period after 1880

Used for all espagnolettes and window knobs 5050

EUR10.96

Hook 5694 Nickel-plated 10 mm

EUR10.96

Window rule 5188 Nickel plated

Model: Aug. Stenman No. 33

Period: 1930-1970

Screw not included.

Matching screw number 11

EUR12.33

Turnstile fittings Inward opening

Weatherstripping for inward opening windows in a solid classic model. Stepwise opening and childproof. Available in nickel-plated and untreated brass. Screw for mounting included.

Fasten the part with the holder to the window frame. The other part is screwed to the bottom of the window frame. The gap between them is up to 10 centimeters opening, which also makes the fitting classified as childproof.

The fitting is tested and approved according to EN16281:2012, SS3587 and K7NT CONS 018.

ATTENTION! Sometimes so-called elevation plates/spacers are needed to get the right distance. Contact us and we will help you.

Price range: EUR56.61 through EUR61.63

Nickel-plated spring ring fittings, outward opening

Weatherstripping for outward opening windows in a solid classical model. Stepped opening and childproof. Nickel-plated. Screw TKFS N 3.5X16 mm for installation included. Template and simple installation instructions included.

The fitting is tested and approved childproof. Also available in untreated brass.

Tips! Sometimes one or more spacers are needed to get the right distance. See related products or ask in our shop.

EUR62.91
