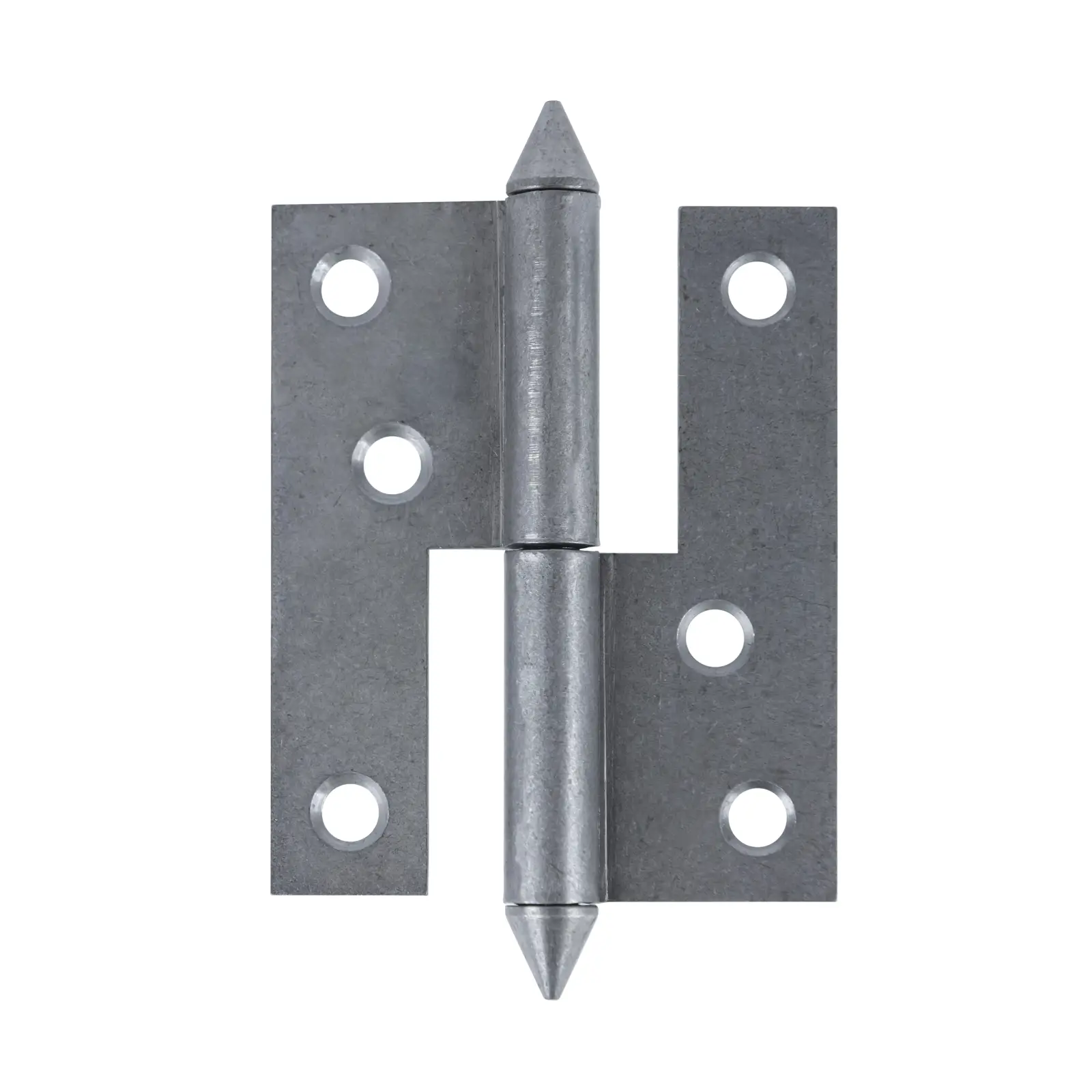

Solid chair hinge with cone, left. Suitable for windows, cabinet and wardrobe doors.
Model from around 1860 to the middle of the 20th century. Typical cone-shaped spigots. Available in both left and right versions. High quality.
Height excl. knobs 74 mm, width unfolded 60 mm, Thickness 2 mm. Untreated iron.
Model: Left
Suitable screw: Screw 13
TIP! Here’s how to find out if you need right- or left-hinged hinges – Close and check! A closed door with hinges visible on the right is right-hinged. Similarly, a closed door with hinges visible on the left is left-hung.
Specifications
| Weight | 0.1 kg |
|---|---|
| Height | 74 mm (excl. spigot) |
| Width | 60 mm (unfolded) |
| Thickness | 2 mm |
| Material | untreated iron |
| Intended for | left-hand slope |
Documents and instructions
No documents
